When accelerating out of a tight corner, engine power alone is not the deciding factor. If the inside wheel spins, torque is wasted exactly where it doesn't generate propulsion. The question of a limited-slip differential or multi-plate LSD is therefore often asked - but technically it is not entirely correct. The multi-plate LSD is not an alternative to a limited-slip differential, but a particularly effective type of limited-slip differential. The actual decision is: Which limited-slip concept suits the vehicle, tires, power, and intended use?
For a BMW vehicle that is regularly driven on track days, the differential is not a side issue. It influences traction, braking stability, turn-in behavior, and tire wear. Those who only choose based on maximum lock value will quickly install a solution that looks aggressive on paper, but does not fit the vehicle's setup.
What a limited-slip differential actually does
An open differential allows different wheel speeds on the drive axle. This is necessary in corners because the outside wheel covers a longer distance. Its disadvantage becomes apparent as soon as one wheel has significantly less grip: The transferable torque is determined by the wheel with less traction. On wet asphalt, at the exit of a corner, or when driving over a curb, the unloaded inner wheel often spins.
A limited-slip differential limits this speed difference and directs more torque to the wheel with grip. The vehicle can accelerate earlier and more controllably. At the same time, the lock changes the self-steering tendency. More locking effect under load can stabilize the rear axle during acceleration, but it can also cause the vehicle to push more over the front axle. When letting off the gas and braking, it influences how calmly or eagerly the rear responds.
This is precisely the difference between a sensible upgrade and a blanket parts decision. A limited-slip differential must work with the entire vehicle: axle geometry, spring rates, stabilizers, tires, power level, and driving style all belong to the same tune.
Limited-slip differential or multi-plate LSD correctly classified
The term limited-slip differential encompasses several design principles. In addition to the multi-plate LSD, there are torque-sensing systems with worm or helical gears, electronically controlled differentials, and simple solutions such as welded differentials. They all aim to distribute torque better, but differ significantly in reaction, controllability, and load capacity.

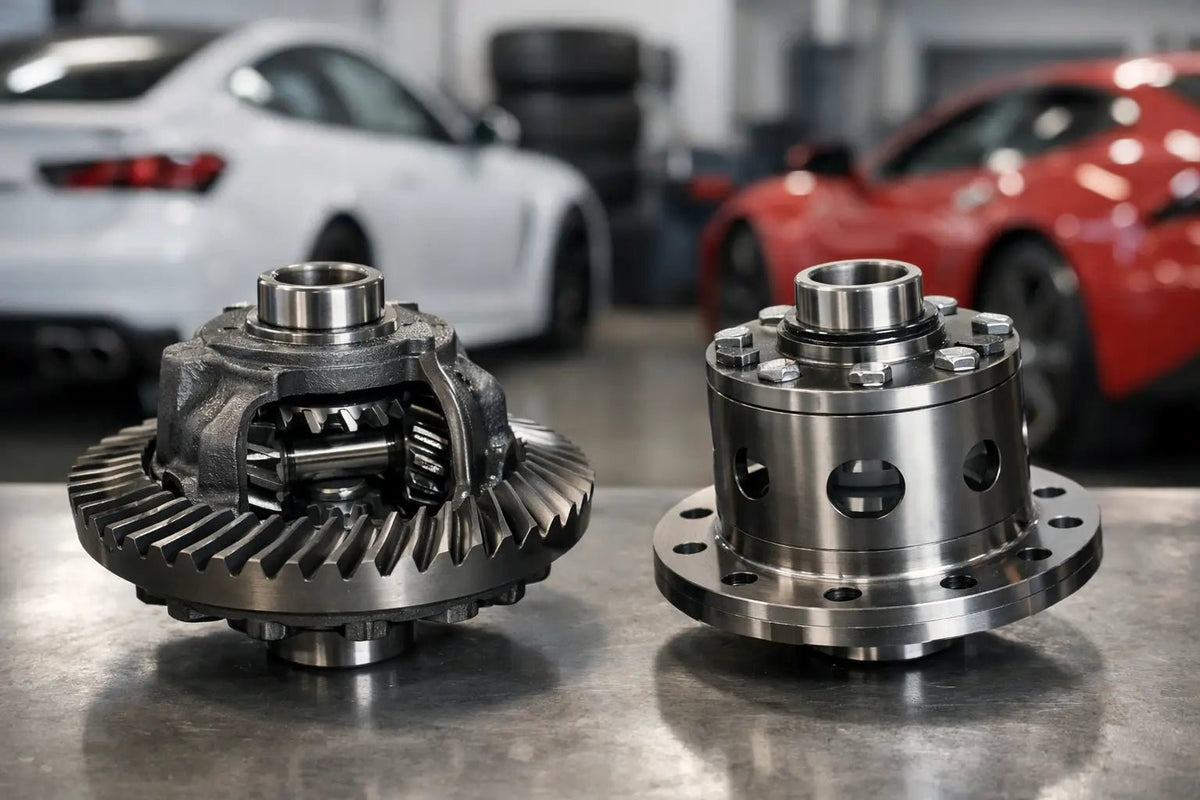

A multi-plate LSD generates its locking effect through friction plates and ramp surfaces. If the drive torque or - depending on the design - the drag torque increases, the plate packs are pressed together. This couples the two output sides more strongly. The decisive advantage: locking effect and characteristics can be very specifically defined by design.
The preload determines how strongly the differential already acts without applied engine torque. The ramp angles determine how quickly and how strongly it locks under traction or deceleration. The number and arrangement of the plates and their friction coefficient also influence the behavior. Therefore, not all multi-plate LSDs are the same. A conservative road tune drives completely differently from an aggressively designed differential for slicks and long stints.
A torque-sensing gear differential, on the other hand, works without friction plates. It responds very cleanly, requires no periodic plate overhaul, and can be a convincing solution for powerful road vehicles. Its limit is reached when a wheel is heavily unloaded or builds up almost no resistance. On curbs, with very stiff suspensions, in rally-like conditions, or in uncompromising track use, a multi-plate LSD usually provides a better definable and more reproducible locking effect.
Why the multi-plate LSD convinces on the race track
On the race track, it's not just about maximum traction at corner exit. What matters is whether this traction remains predictable lap after lap. A correctly tuned multi-plate LSD supports the vehicle during acceleration, reduces one-sided tire slip, and allows for a more precise throttle pedal strategy. Especially with rear-wheel drive with high power, wide tires, and grippy asphalt, this results in a real time gain.
The design is also relevant during the braking phase. A 1.5-way differential works more strongly under traction than under deceleration. It is a sensible compromise for many track day and circuit vehicles: more stable during braking, without unnecessarily pinning the rear when turning in. A 2-way differential can lock almost as strongly under deceleration as under traction. This supports a very active rear and is desired in drift or certain motorsport setups, but requires a driver who works with this reaction rather than against it.
A 1-way differential builds up its effect primarily under load. For powerful road vehicles, this can be pleasant because the turn-in remains freer during load changes. However, on a technically demanding track, depending on the setup, the additional stability during deceleration is missing.
The right choice therefore depends not only on the track driven. An E46 with semi-slicks, coilovers, and regular track days requires a different tune than a high-torque G-chassis road conversion on performance tires. Those who drive with high rear axle load, aero, and slicks can design the differential much more consistently than a car that maneuvers in city traffic daily and needs to function in the rain.
Lock value: Higher is not automatically faster
The lock value is often marketed as the main criterion. A high value sounds like maximum traction, but it can have side effects. If the differential locks too strongly under load, the stress on the rear tires increases during acceleration. The vehicle can push over the front axle, especially if the tires, camber, or front axle grip do not match. During tight maneuvering, tension and noise can also occur.
Too little locking effect, on the other hand, leads to slip on the unloaded wheel. This costs propulsion and creates temperature peaks in the affected tire. The ideal window lies between these extremes and must match the grip level. A vehicle on road tires does not necessarily benefit from a design developed for slicks.
Preload is more than just a comfort issue. It ensures that the differential already works even with small moments and brief wheel unloading. Too much preload makes the vehicle more unwilling when maneuvering and in tight bends. Too little preload can delay the response in critical transitions. For a precise setup, this value is deliberately chosen, not randomly adopted.
Maintenance and oil are part of the concept
The multi-plate LSD is a wear part - and that is not a disadvantage, but part of its suitability for motorsport. Friction plates, steel discs, and preload springs are subjected to high loads. With increasing operating time, the locking effect can decrease or change. Those who regularly drive their vehicle hard should change the differential oil at fixed intervals and have the condition checked if the driving behavior is conspicuous.
The oil used must match the respective differential. An incorrect coefficient of friction can change the response behavior, promote noise, or unnecessarily stress the plates. Additives that seem sensible for other differential types are not automatically suitable for every multi-plate LSD. Manufacturer approval and planned use dictate the direction here.
Installation is equally crucial. Flank play, contact pattern, bearing preload, and housing condition must be correct. A high-quality differential in a wrongly adjusted final drive does not provide precision, but noise, heat, and, in the worst case, consequential damage. At WEHRAN MOTORSPORT, therefore, the focus is not on the part in isolation, but on the functioning system of vehicle platform, drive, and application profile.
Which differential for which application?
For a sporty road car, a torque-sensing limited-slip differential is often attractive when low maintenance, good everyday behavior, and clean traction are required. As soon as the vehicle is regularly used on race tracks, with semi-slicks or slicks, and under high thermal load, the multi-plate LSD demonstrates its strengths: precisely definable, tunable under both load and deceleration, and effective even with significant wheel unloading.
For drifting, hill climbs, or uncompromising circuit vehicles, a more aggressive multi-plate design may be appropriate. However, it demands more from the driver and the rest of the setup. A welded differential remains inexpensive and provides permanent power transmission, but it is rarely the clean answer for a precise, versatile performance vehicle. It puts more stress on tires and drivetrain, worsens maneuvering, and has no tuned locking characteristic.
Before choosing a differential, the intended use should be honestly defined: How often does the vehicle drive on the road, what tires are used, how much power is available, and should the rear react neutrally, stably, or consciously actively? Only from these answers will a differential design emerge that truly works on the track.
The best limited-slip differential is not the one with the highest lock value. It is the one that provides reproducible traction at corner exit, inspires confidence during braking, and integrates into the vehicle in such a way that the driver can get on the gas earlier every lap.
