An E36 that overheats in traffic, on country roads, or after a few laps on the track does not need a cosmetic solution. Anyone looking to install a radiator for a BMW E36 should view the cooling system as a whole. A larger water radiator can create reserves, but only if the ducting, fan, thermostat, expansion tank, and bleeding system are also functioning.
Especially with older vehicles, changing the radiator is often more than just routine maintenance. Plastic side panels become brittle, cooling cores get clogged internally, and the original cooling capacity is no longer sufficient for higher engine output, high ambient temperatures, or sustained track use. A suitable aluminum radiator is then a functional upgrade – provided it is truly compatible with the engine, auxiliary units, and intended purpose.
Before installation: Determining the right radiator
With the E36, the vehicle model series alone does not determine the correct version. Inline-six engines, four-cylinder engines, diesels, and conversions may require different radiator dimensions, connections, and mounts. Air conditioning, automatic transmissions, and an additional oil cooler also influence the available installation space. A radiator with connections for the transmission oil circuit, for example, is not automatically the better choice for a vehicle with a manual transmission.
For a street-driven vehicle with stock power, a high-quality replacement radiator in the correct stock geometry is often sufficient. For track days, higher-performance engines, or supercharger and turbo conversions, however, the effective cooling surface, core thickness, and especially the volume of air passing through the radiator are what count. A thicker core is not automatically better: if the airflow in front of and behind it is poor, a very dense radiator can even cause disadvantages at low speeds.
Before ordering, check the position of the upper and lower hose connections, mounting points, the fan mounting socket, and the clearance to the engine and the front panel. For conversions involving different engines, modified intake systems, or auxiliary coolers, taking measurements is mandatory. Motorsport-ready does not mean universally compatible.
Material and preparation for the radiator change
Do not plan the change with a hot engine. The cooling system is under pressure, and hot coolant causes severe scalding. The vehicle must be completely cooled down and parked as level as possible. A lift makes access from below easier, but it is not strictly necessary if the underbody protection and drainage area are safely accessible.
In addition to the new radiator, fresh coolant suitable for the vehicle, distilled water, and new hose clamps are part of the basic equipment. Also, inspect the large coolant hoses, the small bleed hose, the radiator mounts, the radiator cap, and the expansion tank. A new radiator will not fix a defect like a cracked tank or a non-pressurized cap.
For removal, you usually need a drain pan, socket and ring wrenches, screwdrivers, pliers for hose clamps, and clean rags. For a mechanical fan, a suitable thin open-ended wrench for the viscous clutch is useful. Depending on the E36 version, the thread of the fan clutch may be a left-hand thread. Check the direction of rotation before loosening instead of using force on plastic parts.
Installing a radiator for BMW E36: Removal without subsequent damage
First, only open the expansion tank cap when the engine is cold. Then drain the coolant in a controlled manner into a sufficiently large pan via the intended drain plug or by loosening the lower radiator hose. Coolant does not belong in the drain or on the ground. It is harmful to the environment and highly toxic to animals.
Next, remove the fan shroud and fan as far as the version requires. For the electric auxiliary fan, mark the plugs and cable routing so that nothing gets pinched during reassembly. The shroud must not be under tension between the radiator and the fan blade. Especially after conversions, one often sees poorly fitted shrouds—they rub, break, or reduce the effective airflow.
Carefully loosen the upper and lower coolant hoses. If the hoses are stuck to the old plastic connector, do not pry against the connector. In case of doubt, cut the hose in a controlled manner—it has to be replaced anyway—or loosen it with a twisting motion. Afterward, remove the small bleed hose and any existing lines for automatic transmissions or temperature sensors.
The radiator is usually seated on lower rubber mounts and guided at the top. Lift it straight up. Watch out for the condenser, power steering lines, and the fins of adjacent radiators. Bent fins reduce air throughput, and damage to the AC condenser quickly turns a manageable radiator change into an expensive repair.

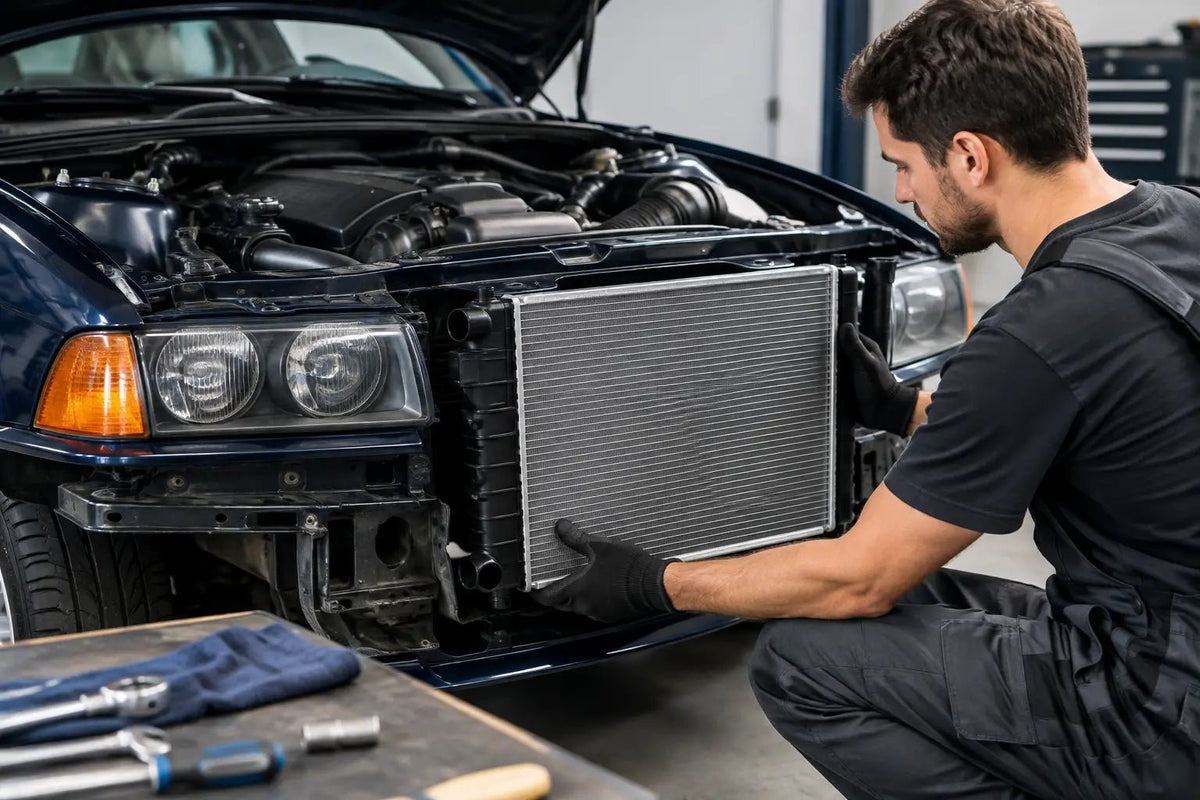

Assembly: Fitting, decoupling, and airflow
Before inserting, clean the area around the lower mounts. The rubber buffers must be fully seated and must not be hardened or torn. A radiator that is not properly guided at the bottom will work against the mounts and hoses as the engine moves. In the long term, this leads to leaks or cracks at the connections.
Install the new radiator without tension. No connection should be stressed by pulling, twisting, or a hose that is too short. Install all hoses up to the stop and align the clamps so that they remain accessible but do not strike the shroud, belts, or fan. Reusing clamps only makes sense if they still provide uniform pressure and are not corroded.
Airflow deserves special attention. The fan must pull air through the radiator core, not from an open gap next to it. An intact fan shroud is therefore not a minor part. For a performance-oriented build, cleanly attached ducts, a sealed front connection, and a high-performance electric fan can be more effective than just a thicker radiator alone.
If an auxiliary oil cooler or an intercooler is located in front of the water radiator, the thermal load increases. The components must not unnecessarily shade the main radiator and must provide sufficient clearance for airflow and cleaning. For hard use, a coordinated cooling system is what counts, not the largest individual component in the engine bay.
Filling and bleeding: Where most mistakes occur
After installation, the system is filled with the appropriate coolant mixture. The exact mixing ratio depends on product specifications and expected temperatures. Pure water may improve heat absorption under certain circumstances, but it does not provide sufficient corrosion and frost protection for normal road use. For a street-trackday vehicle, an approved coolant mixture is the safe basis.
Set the interior heating to maximum temperature. Carefully open the bleed screw at the intended point and fill slowly until coolant emerges as bubble-free as possible. In many versions, the screw is made of plastic—it is only tightened by hand. Too much torque will destroy the thread or the screw head.
Only start the engine when the fluid level is plausible. Let it warm up with the heating circuit open and monitor the temperature gauge, fluid level, and all connections. As soon as the thermostat opens, the level may drop again. Check again after cooling down and correct if necessary. In vehicles with an electric fan, it must start reliably when the appropriate temperature is reached.
A normal reading on the instrument cluster is no proof of perfect cooling. For performance vehicles, monitoring via a more precise temperature gauge or diagnostic data is worth it. What matters is not just the peak value, but how quickly the temperature stabilizes after a load phase. If it rises repeatedly under comparable conditions, cooling reserve or flow is lacking.
If the E36 gets hot despite a new radiator
If the temperature remains too high, the cause is often outside the radiator. A sticking thermostat, a worn water pump, a defective viscous fan, a incorrectly controlled electric fan, or air in the system are typical candidates. A clogged AC condenser, missing seals at the front, or an engine tuned too lean can also increase the thermal load.
For track vehicles, diagnosis should take place under real load. At a standstill, a fan problem might be noticeable, but at speed, an inadequate airflow, a radiator cross-section that is too small, or consistently high engine load is more likely to be revealed. Anyone comparing measured values of water, oil, and intake air temperature will recognize connections much faster than with the stock gauge alone.
A cleanly mounted radiator creates reserves, but durability only arises from the interaction of all components. Take the necessary time for fitting, bleeding, and the first functional check—this is exactly where it is decided whether your E36 will work reliably under load or start losing temperature again after the next fast lap.
