If a vehicle feels imprecise when turning in, changes tracking under load, or becomes unsettled during hard braking, the cause is often not the suspension itself, but its bushings. The question of monoball vs. PU bushings determines how directly forces are transferred between the wheel suspension, subframe, and body. However, it also determines noise, maintenance requirements, and whether a conversion is still suitable for your personal usage profile on the road.
Standard rubber bushings are intentionally designed for comfort, noise decoupling, and a long service life in everyday use. Under high lateral loads, heavy braking maneuvers, and repeated heat exposure, however, they give way. As a result, control arm positions shift, camber and toe values change dynamically, and the defined feel of the front axle is lost. PU bushings and monoball bushings reduce this movement - but in fundamentally different ways.

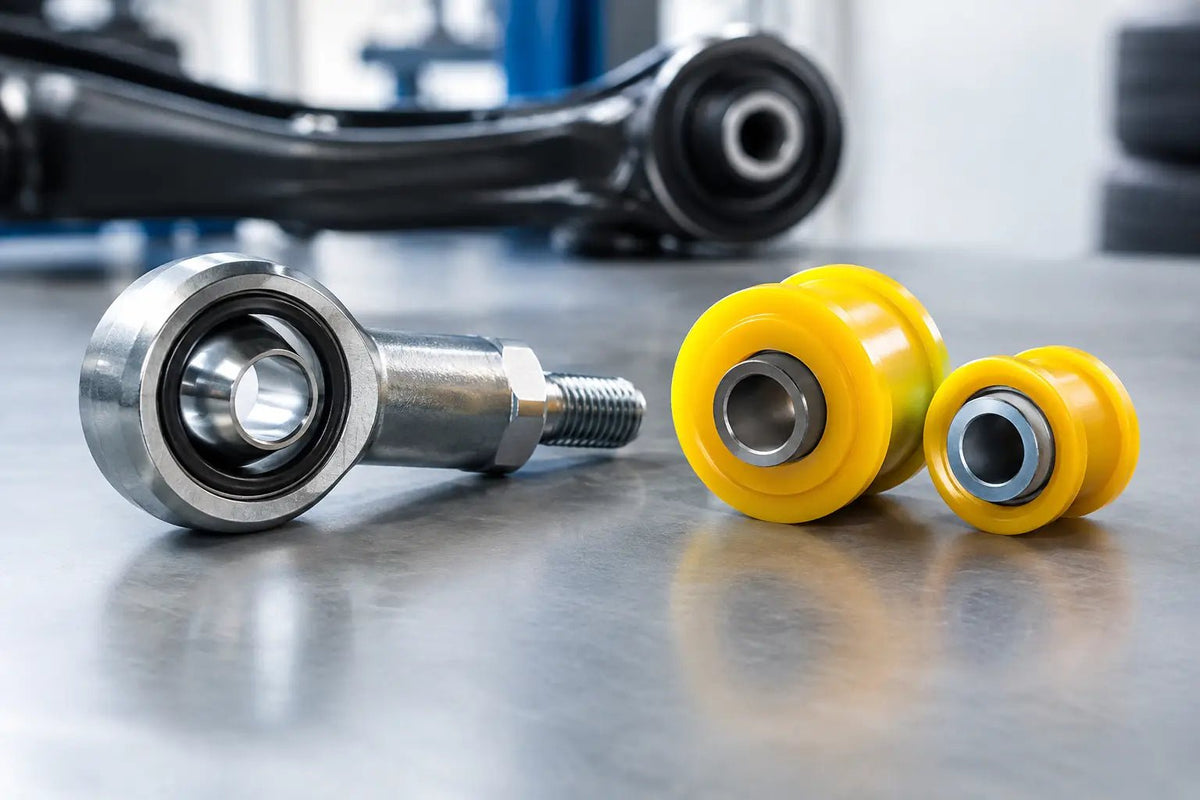

Monoball vs. PU bushings: The technical difference
A PU bushing replaces the elastic standard rubber with polyurethane. This material is significantly more dimensionally stable while retaining a certain degree of elasticity. The control arm can therefore only move to a limited extent relative to its mounting point. How strong this limitation is does not depend solely on the Shore hardness. Bearing geometry, wall thickness, inner sleeve, lubrication, and the design of the respective mounting point determine the result just as much, if not more.
A monoball, on the other hand, is a spherical bearing with an inner ring. It guides the control arm with virtually zero play and allows for the necessary angular movement without the bearing yielding significantly under load. Unlike rubber or PU bushings, flexibility is not achieved through material deformation, but through defined movement within the joint. This is exactly what makes monoballs so precise at the limit.
In practice, this means: PU controls unwanted movement while maintaining residual comfort. Monoball largely eliminates this movement and provides exactly reproducible wheel guidance. Anyone who evaluates both solutions solely in terms of "hard" and "soft" is missing the crucial point: it is about how forces and angular changes are managed within the suspension.
When PU bushings are the more sensible choice
For a sporty street-driven vehicle, PU bushings are often the technically sound first step. Especially at positions with large bushings and high longitudinal forces—such as wishbone bushings, tension struts, or rear subframes—the factory elasticity can significantly dilute handling characteristics. A properly designed PU bushing stabilizes the axle geometry during braking and acceleration without transmitting every bump unfiltered into the body.
This is relevant if the vehicle is regularly driven on public roads, completes longer drives to track days, or needs to remain predictable in wet and poor asphalt conditions. While the body is subject to higher loads than with standard rubber, the additional noise and vibration transmission usually remains controllable with high-quality, correctly installed PU bushings.
The advantages in street and track day use
PU bushings offer noticeably more precise feedback without making a vehicle unnecessarily uncompromising. When turning in, lateral guidance builds up more clearly, the front axle reacts more definitively, and weight transfers become easier to control. At the same time, they can absorb small manufacturing tolerances and vibrations that would be transmitted directly to the body with rigid bearings.
The position is decisive. A PU bushing on a large rear subframe has an entirely different effect than a PU bushing on a stabilizer bar or the shifter linkage. Anyone looking for a balanced setup combines components strategically: highly loaded axle bearings are stiffened, while elasticity is consciously retained at less critical points. Upgrading an entire vehicle to maximum hardness as a blanket rule is not proof of a good suspension concept.
PU also requires clean installation. Contact surfaces must be cleaned, the bushings inserted without tension, and—if intended by the manufacturer—mounted with suitable lubricant. Otherwise, creaking noises can occur that are wrongly attributed to the material. A good PU bushing does not work well because it is hard, but because it is controlled under load.
When monoball bearings play to their advantage
As soon as lap times, reproducible vehicle balance, and precise axle kinematics are in the foreground, the monoball plays to its strength. High and rapidly changing forces act on the racetrack. When braking late, driving over curbs, and in long corners, a control arm must not need to support itself in a bushing before the wheel reaches the desired position. The monoball provides this direct connection.
This is particularly noticeable on the front axle. A monoball on a control arm bushing specifically designed for the vehicle can significantly improve braking stability and steering precision. The driver receives more information about tire grip and load state. Even set values like camber and caster work more consistently because the bearing allows for less inherent movement.
Precision has its price
The gain in directness comes with clear side effects. Monoballs transmit more road noise, vibrations, and harsh impacts into the body. On poor road surfaces, the vehicle can appear more nervous because the bushing no longer filters a portion of the movement. Then there is the maintenance aspect: spherical bearings are wear parts. Dust, water, road salt, and high loads shorten their lifespan if they are not protected against environmental influences.
For a pure track tool, a time-attack vehicle, or a consistently built club-sport vehicle, this is a calculable compromise. For a daily driver, it is often the wrong one. Not because monoballs are technically poor, but because their area of application requires regular inspection and higher tolerance for NVH. NVH stands for Noise, Vibration, and Harshness.
Not every bearing point requires the same solution
The correct answer to monoball vs. PU bushings is therefore often: both, but in the right places. A precise setup follows the load path of the vehicle rather than a blanket material dogma. Bearings that directly influence tracking and braking stability benefit more from very play-free guidance. Bearings that decouple vibrations from the subframe or absorb large amounts of movement in everyday life can be tuned more sensibly with high-quality PU.
For older BMW platforms, another factor comes into play: the condition of the body and the mounting points. A worn bearing point, corrosion, or torn subframe mounts will not be improved by hard bushings. On the contrary: the higher force transmission can make existing weak points visible more quickly. Before the conversion, mounting points, welds, bolted connections, and the entire axle geometry should be put to the test.
Even spring and damper rates must fit the bushing concept. A monoball setup with soft, poorly tuned dampers does not create a race car feeling, but an unsettled vehicle. Conversely, a well-tuned suspension with strategically used PU bushings can be faster and more trustworthy on the track than an indiscriminately stiffened setup.
Make the decision based on your usage profile
For a sporty street vehicle with occasional track days, PU at the relevant axle points is usually the more sensible base. It reduces the spongy feeling of the standard setup, keeps comfort and noise within a usable range, and requires less ongoing attention.
For a vehicle that works predominantly on the racetrack, monoballs at kinematically critical points are the more consistent choice. There, it is not decoupling that counts, but the exact and repeatable position of the wheel under load. If monoballs are chosen, regular visual inspection, play checks, and a realistic replacement plan are part of the setup.
At WEHRAN MOTORSPORT, we stand for functional solutions rather than blanket hardness when it comes to such decisions. The faster vehicle is not created by the most uncompromising catalog entry, but by bushings, suspension, tires, and geometry working as a system. If you determine honestly before purchasing how many kilometers are driven on the road and how many under genuine stress, you will find the bushing solution that works precisely for the long term.
