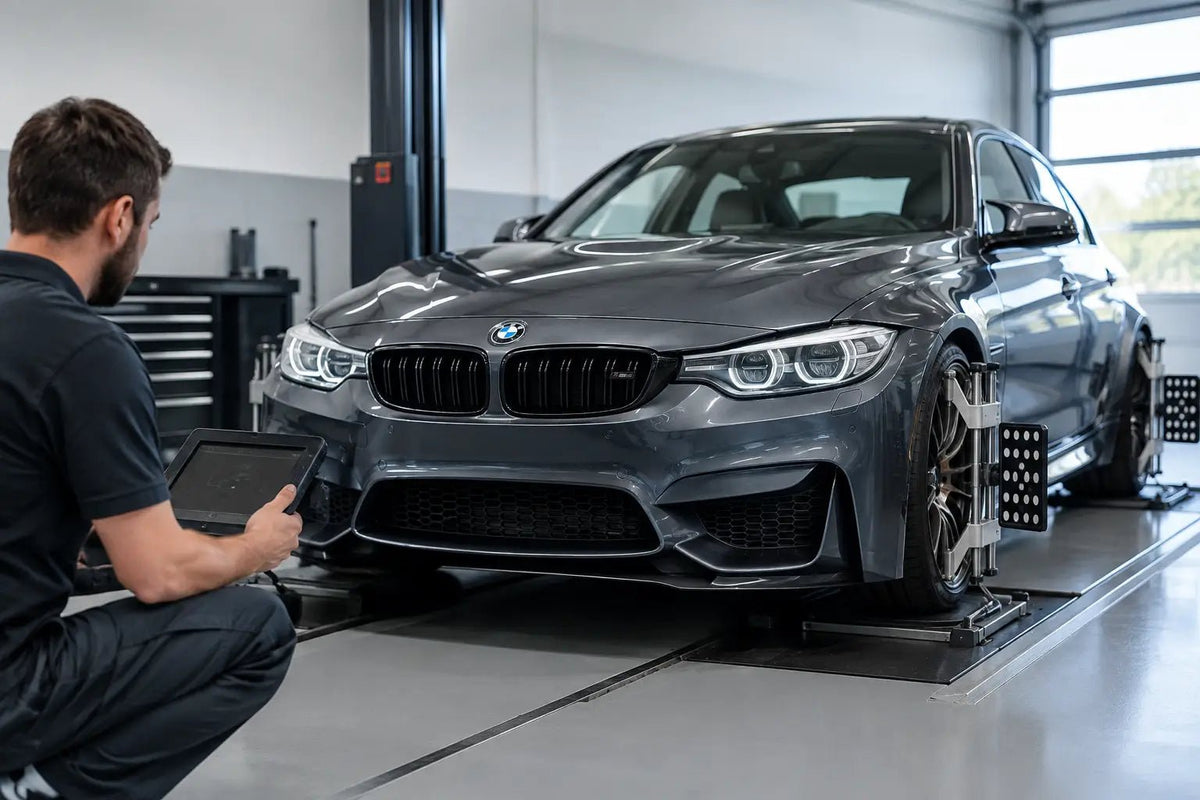

The BMW F80 alignment guide does not begin with a figure from the internet, but with the intended use. An F80 meant to perform well on public roads requires different compromises than a vehicle equipped with semi-slicks, a coilover kit, upgraded brakes, and used for regular track days. Wheel alignment determines whether the car remains stable under braking, turns in willingly, hits the apex, and uses its tires evenly over several stints.
Simply chasing maximum camber values will not result in a faster vehicle. Excessive negative camber reduces the usable braking and traction surface on straights. Conversely, too little camber places massive strain on the outer tire shoulder and causes understeer as soon as lateral acceleration occurs. The goal is not an aggressive look when parked, but a resilient tire contact patch under load.
What determines the F80 alignment
Four factors work together to define the handling of the F80: camber, toe, caster, and the actual vehicle ride height. Added to this are tire construction, tire pressure, spring rate, damper settings, bushing stiffness, and play in the suspension components. Consequently, an alignment is not an isolated service point. It is the final, precise step taken after the suspension has been mechanically assembled correctly.
Camber describes the tilt of the wheel toward the center of the vehicle. Negative camber ensures that the tire works better on its contact patch during cornering body roll. Toe describes whether the wheels of an axle are angled toward or away from each other. It influences straight-line tracking, turn-in behavior, and stability during load changes. Caster primarily affects steering self-centering, steering feel, and stability at higher speeds.
For a near-stock F80 setup, adjustment ranges are limited. At the rear, camber and toe can be adjusted via eccentric bolts. At the front, more negative camber can usually only be achieved sensibly with appropriate camber plates or modified control arm solutions. Without specific suspension components, caster is generally not freely adjustable. This is exactly why the selection of parts must match the intended goal before the alignment takes place.
BMW F80 alignment guide by application
A universal setup table is tempting but rarely precise. Ride height, wheel-tire combination, and driving style noticeably change the requirements. Nevertheless, sensible operating ranges help to structure a setup for the F80.
Street use with a sporty focus
For a predominantly street-driven vehicle with high-performance UHP tires, a negative camber of approximately -1.5 to -2.0 degrees often works well at the front. At the rear, a range of roughly -1.7 to -2.2 degrees is often in a usable window. This keeps tire wear manageable on longer trips while allowing the front axle to work significantly better under load compared to a pure factory alignment.
For a stable street vehicle, a total toe near zero or a very slight toe-in is usually recommended at the front axle. Minimal toe-out can sharpen turn-in, but it makes the vehicle more nervous on ruts and during hard braking. At the rear, a high-performance rear-wheel-drive car generally needs toe-in. This calms the rear end during acceleration, over bumps, and during quick changes of direction.
Street-legal track day
As soon as the F80 is driven with Cup 2-class tires, semi-slicks, or under high thermal loads, the need for negative front camber increases significantly. Depending on the tire, suspension, and track, approximately -2.4 to -3.2 degrees is a realistic operating range. This is not a mandatory figure. A heavy car on a fast course may require more than a lighter-built vehicle on a tight circuit.
At the rear, approximately -1.8 to -2.5 degrees is often a sensible starting point. Too much rear camber costs traction during acceleration, especially when the differential and tires are already heavily taxed. Anyone experiencing an unstable rear end in fast corners should not reflexively add more camber. First, rear toe, tire pressure, damper balance, and the condition of the bushings must be checked.
At the front, toe can be adjusted slightly toward toe-out for track days if needed. This shortens the reaction around the center position and aids initial turn-in. The price is less stability on the motorway and a higher risk of uneven tire wear. At the rear, slight toe-in remains the safe baseline. A common starting value is about 0.15 to 0.30 degrees of total toe-in, depending on the measurement system. It is critical to note whether the specification is per wheel or as a total value.
Pure track tool
A pure track build does not deserve a copied setup from a street car. Camber values over -3 degrees at the front, aggressive toe values, and specific caster corrections can work if the tires, aero, spring rates, and driver profile are matched accordingly. Without reliable tire data, however, this quickly turns into a guessing game.
For this application, temperature patterns and wear profiles matter more than the look of the alignment logs. If the outer shoulder is overheated after several fast laps, it usually means more effective camber is needed or the chassis is rolling too much. If the inner shoulder is significantly hotter and wears prematurely, the camber may be too high or the tire pressure may be incorrect. This diagnosis only works with measurements taken immediately after the stint and with clean documentation.
The right order before the alignment
The best alignment cannot compensate for a worn bearing or a suspension that moves uncontrollably under load. Before adjusting, wheel bearings, tie rods, control arms, ball joints, camber plates, and rear axle bushings must be free of play. Especially with a high-performance vehicle like the F80, soft or worn bushings significantly distort the statically measured values.
After that, the final ride height is determined. Anyone who aligns first and then lowers the coilover suspension significantly will change the camber, toe, and the relationship between the axles once again. With major modifications, corner weighting is also part of the process. Corner weighting does not replace a wheel alignment, but it creates the foundation for the vehicle to react reproducibly under braking and turn-in, both left and right.
The alignment should be carried out under actual driving conditions: correct tire pressure, wheels mounted, a defined fuel level, and, if possible, the driver's weight in the seat. For a vehicle that is consistently driven on the track, this effort is not just a detail. It prevents the geometry from looking good only on the alignment rack.
Sensibly generating front camber gain
More negative camber at the front axle is one of the most effective steps for the F80 against understeer in fast corners. Adjustable camber plates are usually the cleanest solution for this, as they create the camber exactly where it is needed. At the same time, clearance to the strut, tire, and wheel arch liner must be checked, especially with wide wheels and a low ride height.
Modified control arms or tension struts can additionally influence caster and toe behavior. In a well-thought-out build, this improves steering precision and stability, but it also changes the load on ball joints and bushings. Motorsport-capable does not automatically mean uncompromisingly stiff. A spherical-bearing build can work precisely, while excessive stiffness can cost grip on poor surfaces and make the vehicle nervous.
Read tire wear instead of "gut feeling"
After every relevant change, the tires should be checked. It is not just about whether one shoulder is more worn than the other. Fine tearing, feathering, shiny overheating zones, and different temperatures across the inner, middle, and outer sections provide clear clues.
A tire working hard on the outside does not necessarily require more camber. Excessive air pressure can reduce the effective contact patch, while a damper that is too soft leaves the wheel on its outer edge for too long. Conversely, a correct camber measurement can remain ineffective if the tire is thermally overwhelmed after a few laps. Setup work therefore always requires a reference to the track, outside temperature, lap length, and tire model.
Documentation makes the setup faster
After every alignment, the camber, toe, ride height, tire model, cold and hot pressures, and observations from the stint belong in a setup log. Without this data, any future change becomes a matter of memory. With it, you can understand why the vehicle was stable on a fast track but would not turn in on a tight one.
Anyone who takes the F80 seriously should treat wheel alignment as an active tool. A precisely adjusted vehicle gives the driver confidence, saves tires, and makes performance usable in the first place. The best next change is therefore not always the next part, but often a clean measurement following an honest look at what the tire is already telling you.
