A front lip can make the front end of a G80 look significantly more aggressive - but only if it fits properly. Anyone looking to align a front lip for a G80 must check more than just the distance to the bumper edge. Symmetry, material tension, mounting points, and ground clearance determine whether the component remains secure at speed or starts rattling, rubbing, or sits crooked after just a few kilometers.
Especially with carbon fiber and fiberglass lips, installation is not a task that can be finished with two screws and a roll of tape. The G80 bumper features complex geometry with contours, radii, and air intakes. A proper alignment follows these lines precisely without forcing the component onto the bumper under tension.
Why front lip alignment matters
Visually, an uneven overhang is immediately noticeable. Technically, a misaligned lip is even more problematic. At higher speeds, air pressure at the front increases significantly. If the lip does not sit flush against the entire surface, or if individual areas are pulled downward by stressed fasteners, the load is permanently focused on a few points. In carbon fiber, this can lead to cracks around drill holes; in plastic or fiberglass parts, it causes material fatigue.
A correctly aligned lip distributes the load across the designated contact and mounting surfaces. It follows the bottom edge of the bumper, maintains an equal overhang on both sides, and holds its position even after multiple thermal cycles. This is particularly relevant if the G80 is regularly driven fast on the highway or sees track day use.
Not every front lip is designed the same way. A component with pre-drilled mounting points requires a different approach than a universally adjustable variant. It also makes a difference whether the lip only emphasizes the outer corners or extends across the entire width of the vehicle to the center area. The golden rule remains: position first, check, and only then fasten permanently.
Aligning a front lip for a G80: Preparation without compromise
Park the vehicle on level ground. A slanted lift, a lowered curb, or wheels relieved of pressure on one side will distort your perception of ground clearance and symmetry. Ideally, the G80 should be on all four wheels on a flat surface and at its final ride height.
The underside of the bumper must be clean, dry, and free of grease. Old adhesive residue, road grime, and care products prevent mounting tape from adhering reliably. If the lip is installed using high-performance double-sided tape, temperature also plays a role. Cold components, a cold bumper, and humid air are poor conditions for a permanent bond.

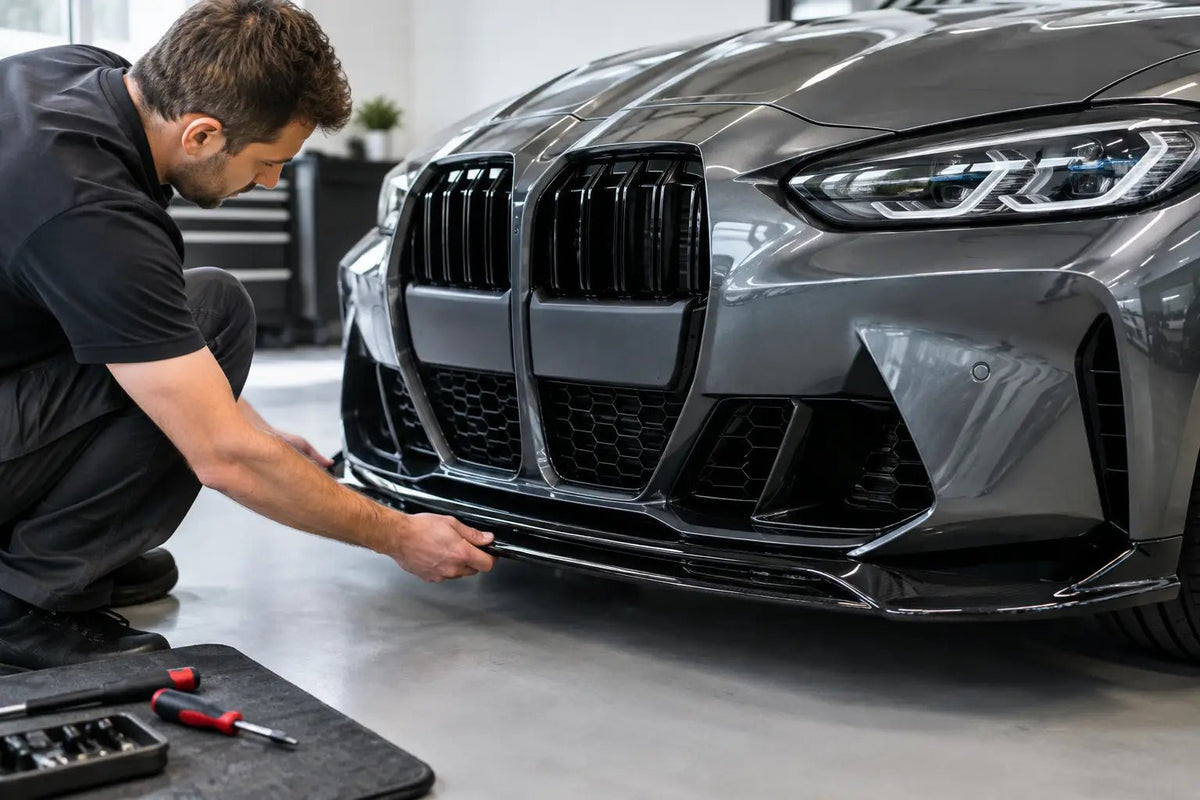

Position the lip first without tape or screws. Don't just check the visible front edge; it is crucial to check how the contact surface on the underside fits and whether the lip’s holes align logically with load-bearing areas on the bumper. If the part requires significant bending to reach individual points, either the initial position is incorrect, or the fit requires rework. Force is not an installation tool.
With hand-crafted carbon parts, minor variations in finish are possible. This does not automatically mean a poor fit. The key is whether the lip sits without tension and whether small tolerances can be compensated for by a clean, centered positioning without putting strain on the laminate.
The centerline defines the entire installation
Always start in the middle of the vehicle. Find a clear reference point on the bumper, such as the center contour of the lower air intake or an existing parting line. Mark this position with removable tape. Then, mark the center of the front lip. Once both marks align exactly, the most important orientation is set.
Afterward, compare the side overhangs. Do not rely solely on your eyes; measure at multiple points: from the lip edge to the outer bumper contours, to the wheel arch edges, and to prominent lines of the lower air intakes. A single measurement can be deceptive because the front of the G80 is not a flat surface. Only multiple comparison points prove whether the lip is truly centered.
A practical procedure is to fix the lip in the center with two short strips of tape and then align it from the center outwards. Check both sides after every adjustment. If one corner is screwed down first, the other side often pulls out of its ideal position. The result is a clean finish on one side and a visible gap on the other.
Evaluating gap dimensions correctly
An even gap is more important than a theoretically perfect gap-free fit. Depending on the design, material, and bumper contour, a lip may have a small gap at certain transitions. It becomes critical if the gap increases on one side, if the lip looks wavy, or if an area only stays in shape due to high contact pressure.
Look at the front from different angles: head-on at vehicle height, from the side at the level of the lip edge, and from a distance. Taking photos can help, as the camera often shows minor asymmetries more clearly than the naked eye. Also, check if the lip runs parallel to the bumper at the side ends. A deviation is particularly visible there.
Fix before fastening
Once the center, overhangs, and gaps are correct, secure the position lightly. If using mounting tape, do not remove the protective film all at once. Pull it out a few centimeters at the ends so that the lip can be pressed down in a controlled manner after the final alignment. Only when both sides are checked should the tape be fully activated from the inside out.
For screw connections, also start in the middle area. Tighten the middle screws only by hand and work outward alternating between left and right. This keeps component tension low. Only after all mounting points are set and the alignment has been re-checked, tighten the fasteners with a delicate touch.
Excessive torque is a common mistake. A screw should hold the lip securely, not force the material into the bumper. Use appropriate washers to ensure the load is not applied point-specifically to carbon or fiberglass. If available, clips, threaded inserts, or OEM bumper mounting points should be used as a priority. Self-tapping screws are only sensible where no better load-bearing solution is provided.
Check ground clearance and real-world stress
After installation, what matters is more than just how it looks in the shop. With the vehicle stationary, turn the wheels fully to check if the lip has sufficient clearance from the tires, wheel liners, and underbody panels. For lowered vehicles, the overhang in front of the front axle is also critical. A lip that has sufficient static ground clearance can still bottom out on driveways, crests, and during compression.
Also check the underside. Screws, washers, and adhesive surfaces must sit cleanly without edges or loose ends protruding into the airstream. Air, water, and dirt will find any poorly sealed transition. If you use the vehicle on the racetrack, you should check the fasteners after the first stint and at regular intervals thereafter.
For a lip with a functional contour, there is one more point to consider: openings for radiators, brake cooling, or front air ducts must not be unintentionally blocked. An aggressive front look offers no advantage if it impairs airflow or disturbs components in an intended flow area. In this case, form must follow function.
Avoiding typical installation mistakes
The most common mistake is installing from the outside in. It may seem faster initially, but it often leads to the center no longer sitting exactly right. Relying solely on tape when the lip is designed for additional mechanical fastening is also problematic. Tape stabilizes and seals the contact area, but under load, it does not automatically replace a proper screw connection.
Also avoid installing the lip under tension to close a small gap. The component stores this tension. Temperature changes, vibrations, and high speeds will then permanently work against the mount. It is better to release the position, recenter it, and find the root cause.
If new holes are drilled, mark them only after full alignment and re-check the position before every drilling process. A wrongly placed hole is hard to hide on visible carbon and requires unnecessary effort to correct on a bumper. Precision over speed - this is exactly where it is decided whether the installation will stand the test of time.
A cleanly mounted front lip does not look like an aftermarket accessory, but like a functional part of the vehicle's front end. Take the time the component requires for alignment. Your first controlled kilometer will then show not only a coherent line but also a mounting system you can rely on at speed.
