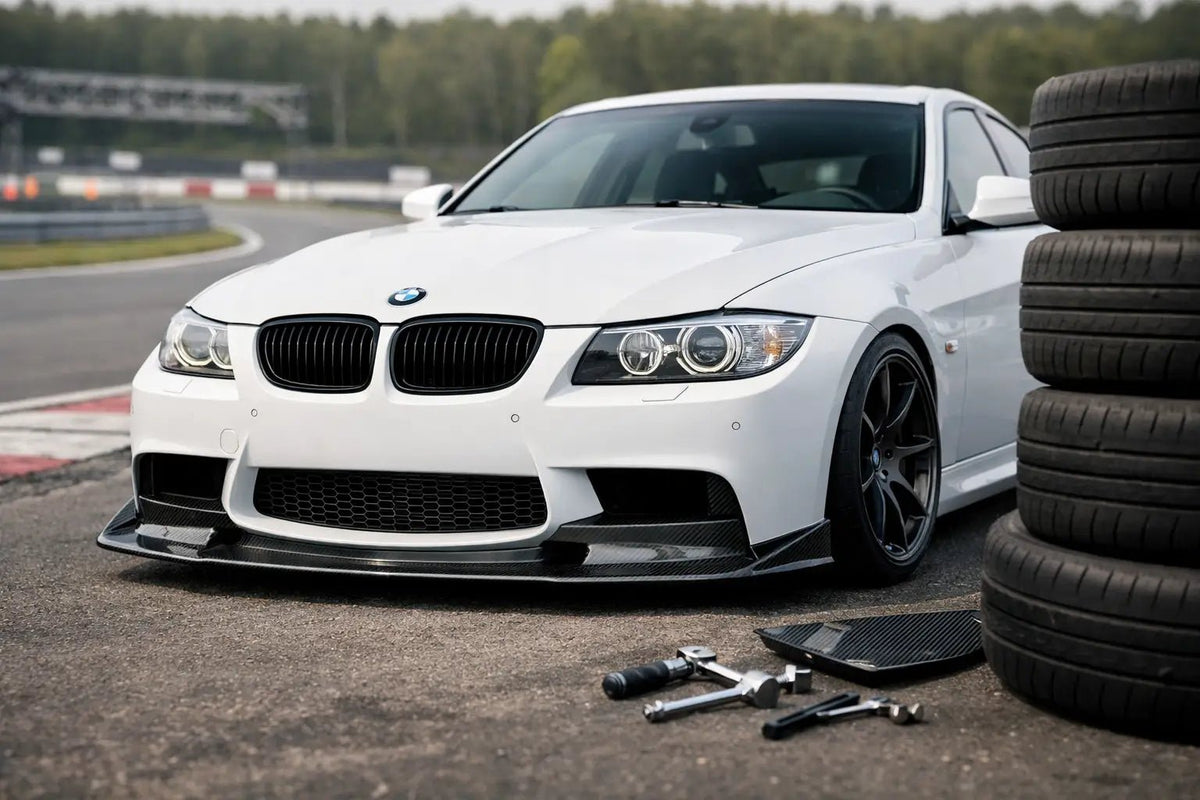

A front splitter for the E90 is not a component you simply install and then forget about. If you want to properly tune an E90 front splitter, you need to work on the entire vehicle balance: front axle, rear wing, ride height, damping, and mounting all interact. More downforce at the front can be valuable on a fast lap. However, if the splitter is too low, too long, or not adequately supported, it can, at worst, create instability, ground contact, and damage instead of reproducible performance.
For track days, therefore, it's not about maximum splitter area, but about a package that works stably at speed and suits the real-world usage profile. A sensibly tuned splitter for the E90 improves turn-in and the reliability of the front tires without unbalancing the vehicle during braking maneuvers or quick direction changes.
What a front splitter actually changes for the E90
A functional splitter separates and directs the incoming airflow. Above the splitter, pressure increases in front, while below, the airflow should be accelerated and smoothed. This creates additional front axle load at higher speeds. The effect is not static: at 80 km/h, it is significantly smaller than at 180 km/h. This is precisely why the tuning must match the track, the suspension, and the rear axle aerodynamics.
Drivers usually feel a properly designed splitter first in fast corners and under braking. The front reacts more precisely, the front tire builds grip more reliably under load, and the vehicle requires less steering angle. However, this does not automatically mean that every extension makes you faster. If the aerodynamic balance shifts too far forward, the rear can become light at high speeds. Vehicles without a tuned rear wing or with weak rear axle mechanics react particularly nervously to this.
Furthermore, a front splitter does not replace suspension work. Too little negative camber, unsuitable damper tuning, or worn bearings cannot be compensated for with a carbon plate. Aerodynamics amplifies what is mechanically already present—for better or worse.
Properly tuning an E90 front splitter: Laying the foundation
The first step is a defined starting point. Always measure the vehicle height on a level surface and with the tires, air pressure, and load that will later be used on the track. A car measured empty in the workshop can, with a driver, helmet, fuel, and braking load, sit several millimeters differently at the front. These millimeters determine whether a deeply mounted splitter has free airflow or continuous contact with the asphalt.
For an E90 used for track days, the splitter should be mounted as parallel to the road as possible or with a very slight forward rake. An aggressive angle can increase the effect with some geometries but makes the component much more sensitive to pitching movements. During hard braking, the front dips. If the splitter touches the ground, the airflow is disturbed, and the load suddenly increases.
It's not just the visible lower edge of the bumper that's crucial. The lowest point of the entire vehicle is relevant. Check the ground clearance at the front edge of the splitter, at the side corners, and at the mounting points. Curbs, dips, and compressions on the track are the real limits, not the garage entrance.
Start conservatively with overhangs
A moderate overhang in front of the bumper is a sensible starting point. A very long extension theoretically provides more effective area but increases leverage, risk of contact, and sensitivity to height changes. For a car that is regularly driven on public roads, a shorter, well-supported splitter is often the faster solution over an entire day of driving.
If you only drive on smooth asphalt and with clearly defined suspension usage, you can gradually increase the area. Each change should be made individually. First change the overhang, then test. If ride height, tires, wing angle, and dampers are changed simultaneously, it will later be impossible to determine which component caused the reaction.
Mounting determines function and durability
A splitter that visibly flexes at speed does not work reproducibly. Even more critically: the dynamic load is then distributed to unsuitable areas of the bumper. Plastic trim pieces are not load-bearing motorsport structures. A functional setup requires a strong connection to stable points on the bodywork or to a specially designed support.
The front mounts do more than just secure against falling off. They define the angle and position. The rear mounts prevent the splitter from folding down under load. Struts, bolts, and supports must be chosen to absorb tensile, compressive, and shear forces. A clean installation with large backing plates is much more valuable than a particularly light plate without structure.
The material must also suit the application. Aluminum is durable and easily repairable but can bend on ground contact. Wood-based motorsport plates are inexpensive, tough, and a proven material for many track tools, but they add weight and require protection against moisture. Carbon saves weight and can be very stiff but requires a well-thought-out design to prevent point loads from causing cracks. For tuning, the material is secondary as long as the shape and mounting remain constant under load.
Achieving balance with the rear axle
A stronger front splitter without a corresponding modification at the rear is the classic mistake in aero-oriented conversions. An effective rear wing for the E90, correctly positioned and angle-adjustable, provides the leeway to further load the front axle aerodynamically. A cleanly designed rear section and a diffuser underbody approach can also help. Which component is necessary depends on the speed and splitter size.
A lack of downforce at the rear usually manifests itself in fast corners: the front turns in eagerly, but the rear loses grip later or unpredictably. In this situation, it is wrong to instinctively extend the front splitter further. It is more sensible to check the rear balance and first adjust the wing angle or wing position. More rear wing angle generally increases stability but can increase drag and thus top speed.
Conversely, an overloaded rear can lead to the vehicle understeering at corner entry. In this case, more front area can help, but only if the tires, camber, and front axle load are already mechanically correct. Aero tuning is always a relationship, not an isolated measure.
Suspension and aero must speak the same language
A splitter changes the load distribution with increasing speed. The suspension must be able to control this additional load. Too soft springs or insufficient compression damping control will cause the front to dive heavily under braking and in fast bumps. The splitter then loses its defined working angle or hits the ground.
However, an extremely stiff front axle is not a universal solution either. It can cost mechanical grip on uneven tracks and overload the tires. The goal is a platform that controls height and pitch movements without preventing the wheel from working on rougher asphalt. Especially for an E90 with mixed road and track day use, this compromise is more important than a radical setup at datasheet level.
Also check camber, toe, and tire pressure before any aerodynamic escalation. A clean front tire with sufficient negative camber utilizes the generated downforce much better. If the outer shoulder is overloaded, additional aerodynamic pressure will not automatically translate into faster cornering.
Test instead of building based on intuition
The first outing with a new splitter is a functional test, not an attempt to set a personal best lap time. After each stint, check the mounts, struts, underside, and any possible scrape marks. Minor contact marks on a sacrificial edge may be acceptable. Cracks, loose bolts, or significant flexing are a clear signal to rework the design before the next stint.
For driving balance, consistent conditions help. Drive with the same tire pressure, similar fuel level, and the same track as much as possible. Document splitter overhang, vehicle height, wing angle, ambient temperature, and driver feedback. Supplement this with lap times and, if available, data from GPS or a logger. A change is only reliable if it shows the same direction multiple times.
Pay particular attention to four symptoms: understeer in fast corners, nervousness under braking, ground contact in compressions, and an unstable rear at top speed. Each of these requires a different reaction. More splitter is not the standard answer.
Daily driving, track, and safety margin
An uncompromisingly low aero setup only works on tracks with predictable curbs and clean asphalt. If you drive the vehicle to the track, visit petrol stations, or have to pass bad access roads, you need a margin of error. A removable or quickly detachable solution can be more sensible than a maximum extension that gets damaged at the first ramp.
Temperature also needs to be considered. A splitter can affect the airflow to coolers, especially if openings, underbody, and air outlets are not designed together. Observe oil, water, and, if applicable, intercooler temperatures after modifications. More front axle load is worthless if stability decreases over a long stint.
The right splitter for the E90 is therefore one that remains dimensionally stable under real loads, matches the rear, and allows enough ground clearance for your use. Start methodically, measure carefully, and always change only one variable. This is how a visible bolt-on idea becomes a reliable tool for precise, fast laps.
